Product Overview

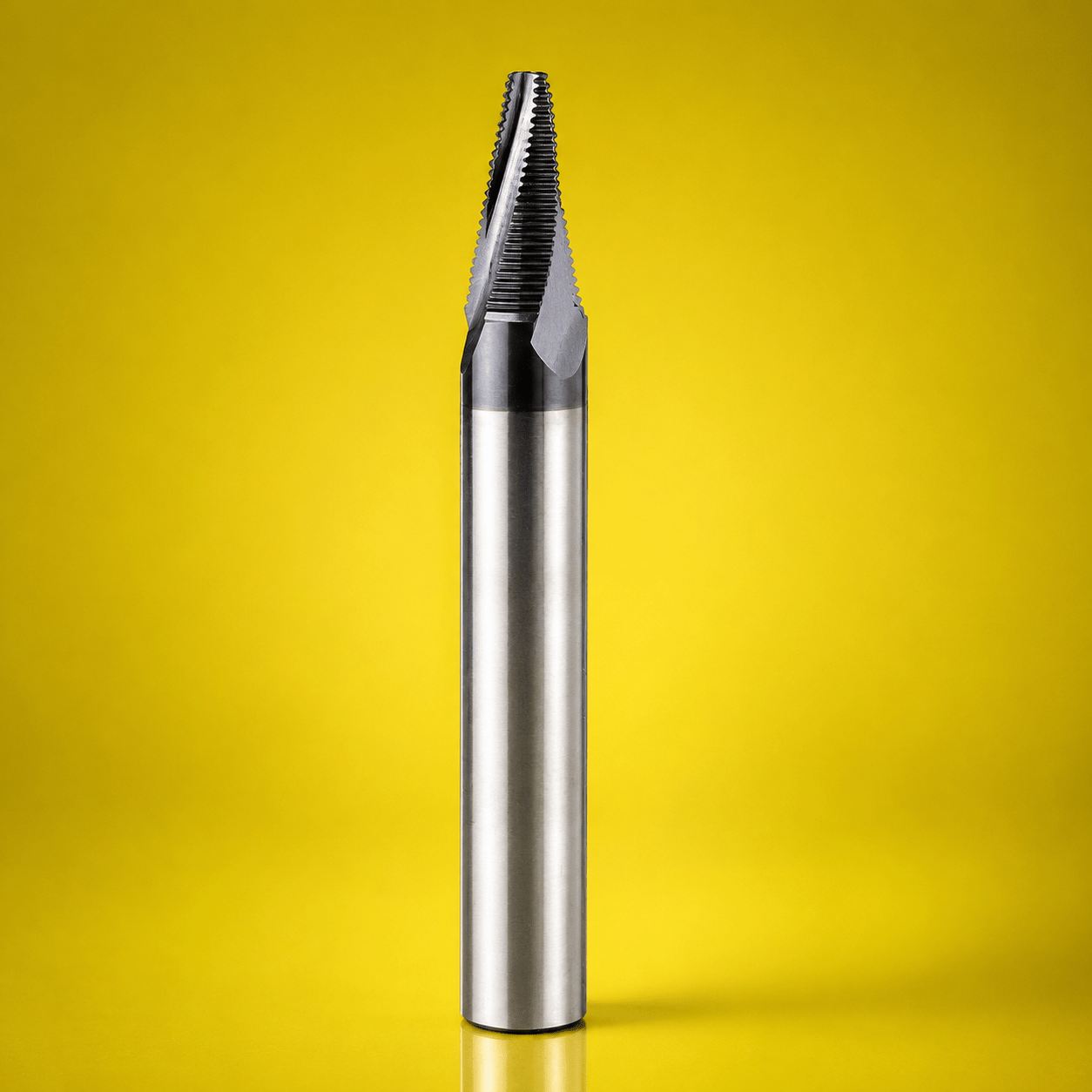

The tapered thread mill is a specialist tool for milling standard tapered threads, including NPT, BSPT, and G tapered metric threads. Unlike conventional taps and dies, it uses helical interpolation inside the workpiece to produce a thread with high dimensional accuracy.

It allows tapered threads to be produced in hard materials, lead-free materials, and exotic alloys where conventional threading tools may be difficult or unsuitable to use.

Related technical terms: tapered thread mill, thread milling, tapered thread, medical components, Swiss-type machining

Related guide: Visit the Learning section

Technical Specifications

• Thread type: Tapered — NPT, BSPT, G (depending on model)
• Flute count: 3 to 5 flutes (multi-profile)
• Body material: Solid cemented carbide
• Coating: TiAlN / TiCN
• Taper angle: According to the relevant standard (NPT: 1:16; BSPT: 1:16)
• Machine requirement: CNC machining centres with helical interpolation capability

Applications & Industries

• Tapered hydraulic and pneumatic fitting threads
• Industrial and oil-and-gas pipe connections
• Valve components with tapered sealing threads
• Aerospace and defence components in hard materials, including titanium and Inconel
• Medical components with sterilizable tapered threads

Features & Benefits

• Produces a tapered thread with one tool and no tool change
• Can machine hard cast parts without edge chipping
• Full CNC control of thread depth and dimensions
• Suitable for blind-hole threads that cannot be made with a conventional die
• Long tool life compared with conventional dies

Frequently Asked Questions

What is the delivery time?

This product is supplied to order. Delivery usually takes 6 to 14 working days, depending on order quantity and raw-material availability. The exact timing is confirmed when the inquiry is registered.

How does ordering work?

First, an inquiry is registered for pricing. After confirmation, supply begins with a 60% advance payment, and the balance is settled after shipment.
